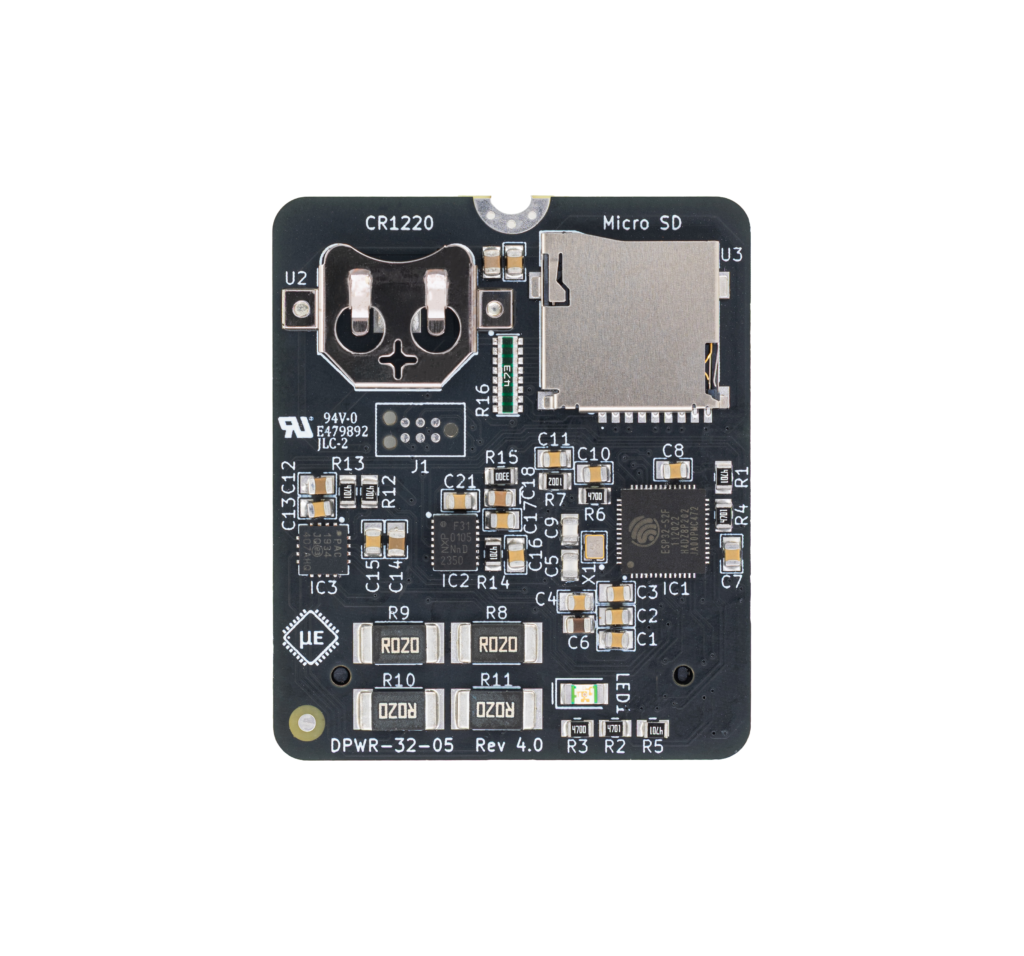

The DC Power Monitoring Module covers all your DC Power Monitoring needs. It measures Voltage, Current, Power and Energy on 4-channels independently. It measures voltage from 0 to 32V, current from 0  to 5A. The module also features SD Card data logging in real-time and Real-Time clock for capturing timestamps. The module works seamlessly out of the box with minimal programming needed. It has two interface options: 1) I2C, 2) RTU-Modbus (UART).

The DC Power Monitoring Module is designed to facilitate the process of DC Power Measurement without the need to go through complicated Hardware design and Software development. The Hardware and Software are already designed and tested thoroughly by us. User just need to interface with the module using I2C or Modbus (UART / RS485) to configure and read DC Power Measurement data. It also logs data into SD Card for an entire Year. The module keeps track of weekly historical Voltage and Energy data. The module is firmware-based and supported fully, firmware updates will be provided to fix bugs and improve device functionality. A PC Application is also provided for free to configure and monitor the device. Firmware can also be updated through the PC Application.
